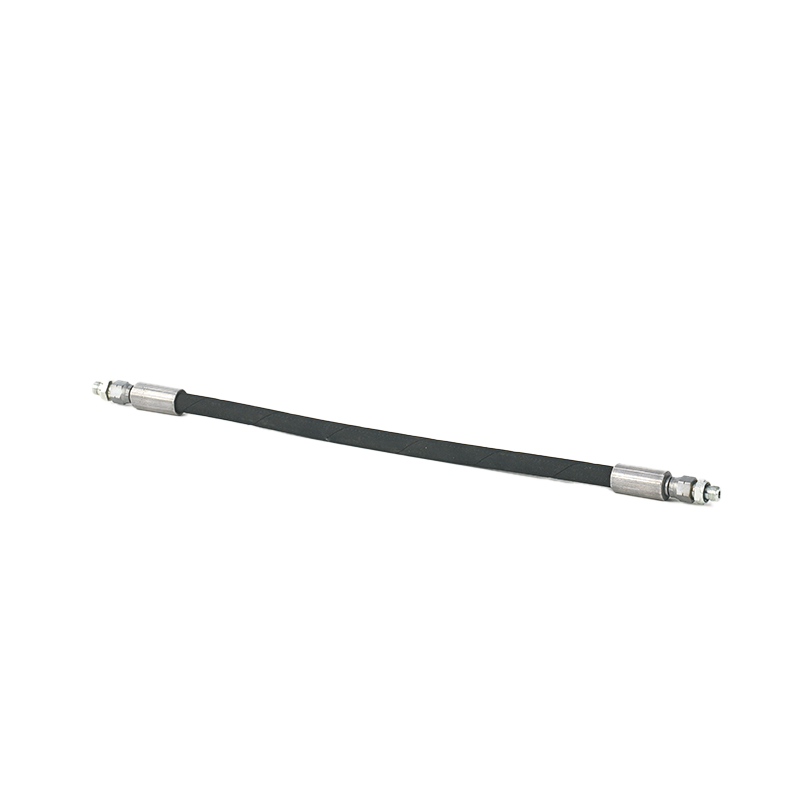

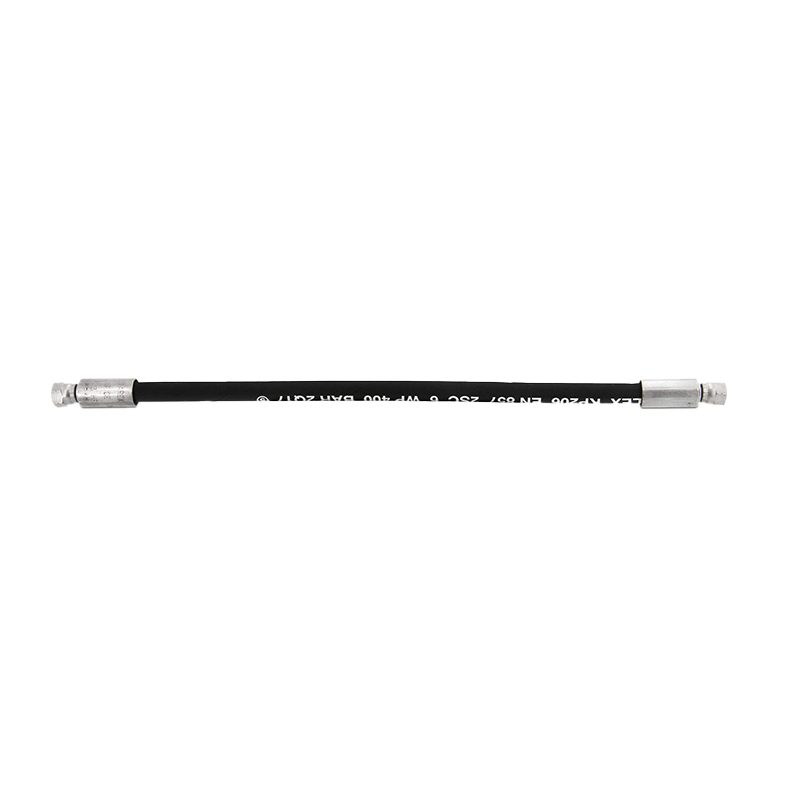

203232 – Pilot Hose 700 mm

Pilot Hose

Hose to connect multiple cylinders in a series.
Connects a master valve or a pneumatic actuator with an other pneumatic actuator.

– Both ends have a straight fi tting
– 400 bar working pressure
– With O-rings

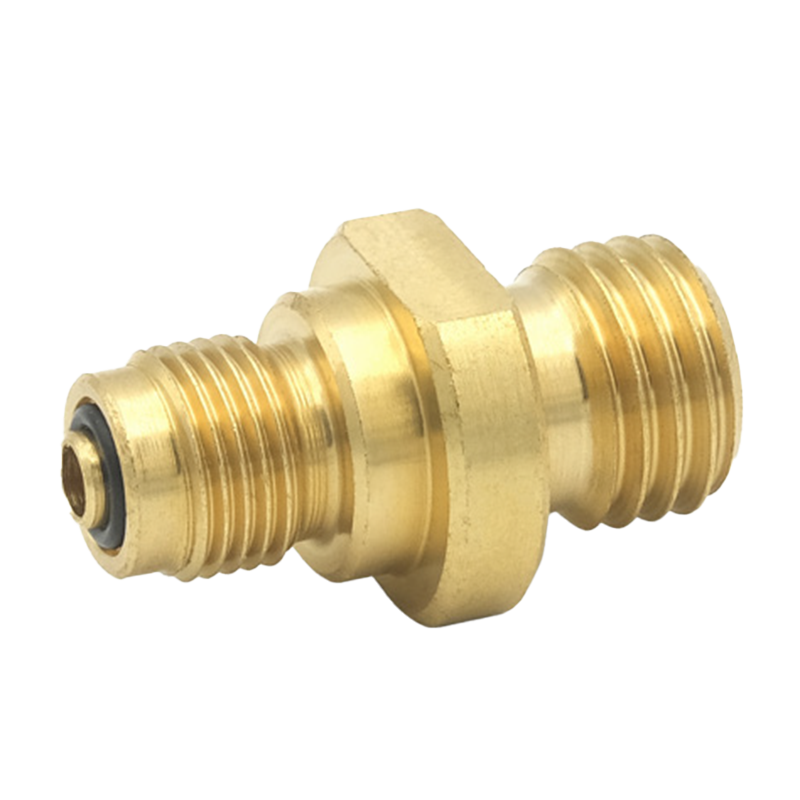

Adapter must be ordered separately. 2 per hose.

Compliant with the Construction Products Regulation (CPR) V3 Oct. 2014

For quotations or more information, please contact us at: 4service@firespect.se

Art. No:	203230	Connection:	2 x M12 x1,5
Length:	700 mm	Bending Radius:	75 mm
Working Pressure:	400 bar	Burst Pressure:	1600 Bar
Interior Diameter:	1/8″	Torque:	20-25 Nm
Material:	Synthetic rubber oil resistant	Temperature Range:	-40ºC to 100ºC
Norm:	EN 857 2 SC
