204220 – Manifolds DN50 Double Row for 4-10 cylinders for 80-140 liter cylinder

Manifold for Inert gas – DN 50

– 2 row configuration
– Suitable for 4 pcs 80 liter cylinders- Max working pressure: 140 bar
– Not to be used without pressure regulator
– Designed for IG01, IG55, IG100 & IG541

Check valve (art no 204100) must be ordered separately. Attached between the hose and manifold.

According to the Pressure Equipment Directive (97/23/EC)

For quotations or more information, please contact us at: 4service@firespect.se

Category:
Art. No:
204220
204221
204222
204230
204231
204232
Total of cylinders: 4 pcs 6 pcs 10 pcs 4 pcs 6 pcs 10 pcs
Type of cylinder: 80 liter 80 liter 80 liter 140 liter 140 liter 140 liter
Surface: Galvanized steel Galvanized steel Galvanized steel Galvanized steel Galvanized steel Galvanized steel
Working Pressure: Max 140 bar Max 140 bar Max 140 bar Max 100 bar Max 100 bar Max 100 bar
Test Pressure: 210 bar 210 bar 210 bar 150 bar 150 bar 150 bar
Diameter: DN 50 DN 50 DN 50 DN 50 DN 50 DN 50
Inlet connection: RC 1″ RC 1″ RC 1″ RC 1″ RC 1″ RC 1″
Outlet connection: RC 2″ RC 2″ RC 2″ RC 2″ RC 2″ RC 2″

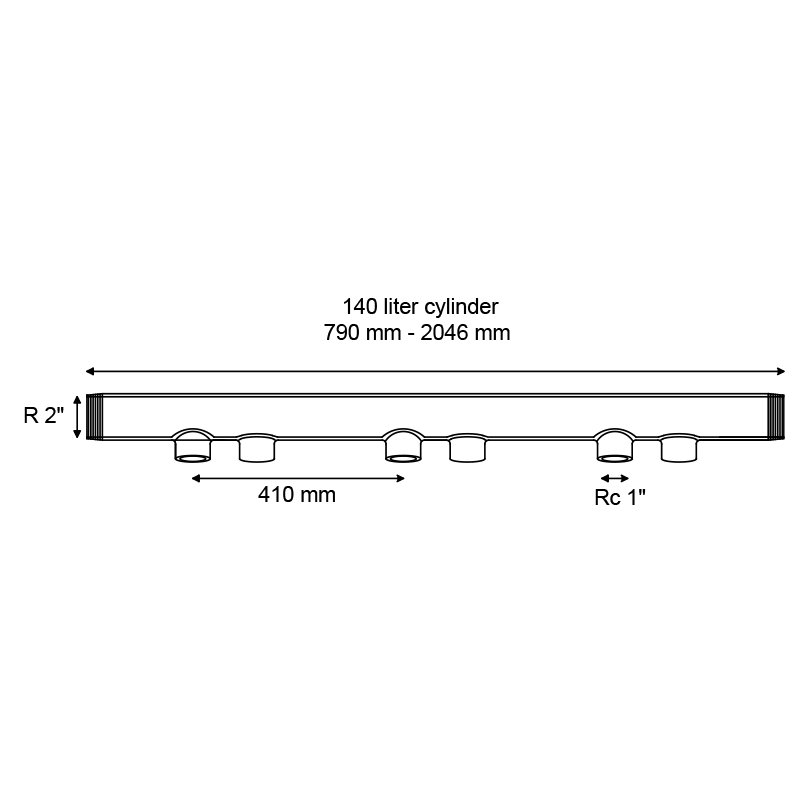

Total length: 580 mm 885 mm 1495 mm 790 mm 1200 mm 2046 mm
Total length between inlet connection: CC 305 mm CC 305 mm CC 305 mm CC 410 mm CC 410 mm CC 410 mm
