Art. No:
|
204320
|
204321
|
204322
|
204323
|
204324
|
|
|---|---|---|---|---|---|---|
| Size: | DN25 (1″) | DN40 (1½”) | DN50 (2″) | DN65 (2½”) | DN80 (3″) | |
| Actuation Pressure: | 8 bar +/- 2 bar | 8 bar +/- 2 bar | 8 bar +/- 2 bar | 8 bar +/- 2 bar | 8 bar +/- 2 bar | |
| Pilot Pressure: | 6-10 bar | 6-10 bar | 6-10 bar | 6-10 bar | 6-10 bar | |
| Actuation medium: | N2 (Nitrogen) | N2 (Nitrogen) | N2 (Nitrogen) | N2 (Nitrogen) | N2 (Nitrogen) | |
| Unit Nominal Pressure @20ºC: | 140 bar | 140 bar | 140 bar | 140 bar | 140 bar | |
| Height: | 371,5 mm | 433 mm | 447 mm | 583,5 mm | 600 mm | |
| Pipe Connector Length: | 113 mm | 130 mm | 140 mm | 220 mm | 226 mm | |
| Seal Material: | POM (Greased); NBR | POM (Greased); NBR | POM (Greased), NBR | POM (Greased), NBR | POM (Greased), NBR | |
| Temperature range: | -20ºC to 50ºC | -20ºC to 50ºC | -20ºC to 50ºC | -20ºC to 50ºC | -20ºC to 50ºC | |
| Weight: | 7 kg | 12 kg | 14 kg | 70 kg | 88 kg | |
| Length: | 209 mm | 221 mm | 221 mm | 298 mm | 298 mm | |
| Width: | 110,5 mm | 120 mm | 120 mm | 137 mm | 137 mm |
RX5112 Directional Valves

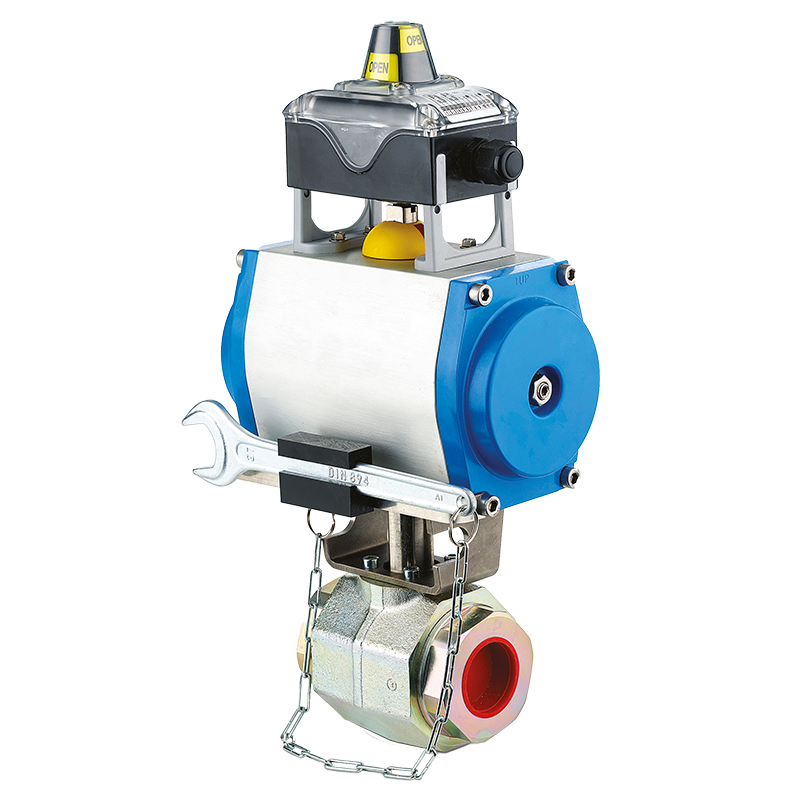

204320 – Pneumatic Directional Valve DN25-DN80 Carbon Steel (Copy)
Pneumatic Directional Valve 1″-3″ Carbon Steel
Pneumatic or manual actuation.
Valve and actuator assembly to isolate separate protection zones from the same cylinder rack.
Includes valve + bracket +pneumatic actuator + manual wrench.
Permits discharge only in the zone with the fire.
KEY FEATURES
– Choice of 6 diameters: 1”/1,5”/2”/2,5”/3”
– 2-way ball valve
– User-defi ned installation position and fl ow-direction
– Stainless steel ball valve with carbon steel housing
– Status indication
– IP 67
According to the Pressure Equipment Directive (97/23/EC) & to low voltage directive (LVD)(2014 35/eu)
For quotations or more information, please contact us by email at: 4service@firespect.se
